When calculating the roof envelope for a 30-meter clear span industrial building, the selection of the secondary framing system—specifically the Steel Purlins—determines the project’s final structural tonnage and long-term stability. At HC (HUA CHUANG ZHONG GONG), we process these essential components to bridge the gap between primary rafters and the building’s cladding. While Galvanized Steel Purlins provide the foundational corrosion defense, the technical distinction between C-shaped and Z-shaped profiles influences how the structure manages environmental loads such as high wind pressure and snow accumulation. This technical guide evaluates the mechanical criteria for selecting the optimal profile to ensure consistent engineering outcomes in modern industrial developments.
Project managers often face the challenge of balancing material weight with structural stiffness. Systematic design requires understanding how cold-formed sections, such as Galvanized C-shaped Steel and Galvanized Z-shaped Steel, behave under stress. Modern steel fabrication utilizes automated CNC lines to maintain sub-millimeter tolerances, ensuring that every hole and fold adheres to international standards. HC maintains strict compliance with manufacturing benchmarks established by ASTM International, providing a stable foundation for infrastructure assets. By evaluating sectional properties and installation logic, this analysis provides the data necessary for informed material procurement.
The Mechanical Profile of Modern Steel Purlins
Structural reliability in secondary framing is defined by sectional properties, primarily the moment of inertia and the section modulus. These factors determine the resistance of steel roof purlins to bending and deflection under vertical and lateral loads. For prefabricated steel buildings, identifying the most efficient shape is a core strategy for resource optimization and safety.
Analysis of C-Shaped Sections
C-shaped sections feature a symmetrical, open-channel design. Traditionally, engineers specify these profiles for buildings with simple span configurations where members are placed end-to-end. Specifically, the vertical flanges of steel purlins provide a consistent mounting surface for wall girts and roof panels. However, C-sections lack the geometric capability for lapping. Consequently, they function as simple beams between supports. HC recommends C-shaped profiles for wall framing and door/window openings where a flush interior finish is mandatory. Their geometry is particularly suited for smaller spans where simplicity of connection takes priority over continuous load-sharing.
Engineering Parameter: Deflection LimitsA critical metric in purlin selection is the deflection limit, often set at L/180 or L/150 of the span. Because C-sections are non-symmetrical along the major axis, they are more susceptible to twisting. HC integrates fly bracing and sag rods into the system to provide lateral restraint, maintaining structural stability under suction forces caused by high-velocity wind.
Technical Logic of Z-Shaped Sections
Z-shaped sections offer a distinct mechanical advantage in multi-span industrial projects. The flanges are engineered at specific angles that allow one member to nest inside the next. Specifically, this “lapping” capability transforms individual spans into a continuous beam across multiple rafters. Engineering data confirms that a lapped Z purlin system can increase load-bearing capacity by up to 20% compared to a C-purlin system of identical material thickness. For large-scale industrial warehouses involving multiple bays, Z-sections represent the industry standard for high-efficiency roof support.
| Evaluation Criteria | C-Shaped Purlins | Z-Shaped Purlins | Project Impact |
|---|---|---|---|
| Structural Continuity | Simple Span (End-to-End) | Continuous (via Lapping) | Z provides higher stiffness |
| Efficient Span Length | Short to Medium | Long (up to 12m+ with laps) | Z suits large industrial bays |
| Installation Complexity | Low (Standard bolting) | Moderate (Lap alignment) | C is faster for small builds |
| Structural Weight | Baseline | Reduced by 10-15% | Z lowers initial material cost |
Environmental Resilience and Corrosion Science
Environmental durability remains a primary concern for permanent industrial infrastructure. Although steel is susceptible to oxidation, HC implements a multi-stage defense system. The longevity of Galvanized Steel Purlins is essential for maintaining the building’s structural integrity and its asset value on the balance sheet. According to industry data, high-quality galvanized coatings can extend the maintenance-free service life of a building to over 50 years.
The Role of Hot-Dip Galvanization
HC purlins undergo a hot-dip galvanization process that complies with ISO 1461 standards. This metallurgical bond creates a series of zinc-iron alloy layers that are physically harder than the base steel. If the surface is scratched during the installation of roof clips or self-drilling screws, the zinc layer acts as a sacrificial anode. Consequently, red rust cannot spread into the high-tensile structural core. This technology is vital for steel roof purlins in high-humidity zones, where moisture accumulation between the roof sheets and the framing is frequent.
Mitigating white rust on the job site
Proper on-site handling is required to preserve the metallurgical finish. Purlins should be stored in a dry, ventilated area at a slight angle. HC observes that water trapped between closely stacked galvanized sheets can lead to zinc hydroxide, commonly known as “white rust.” Furthermore, installers must use bolts for assembly; welding is generally prohibited because it burns off the zinc coating and can alter the mechanical properties of cold-formed steel. HC uses automated CNC punching to ensure all holes align correctly, facilitating a systematic bolt-together assembly.

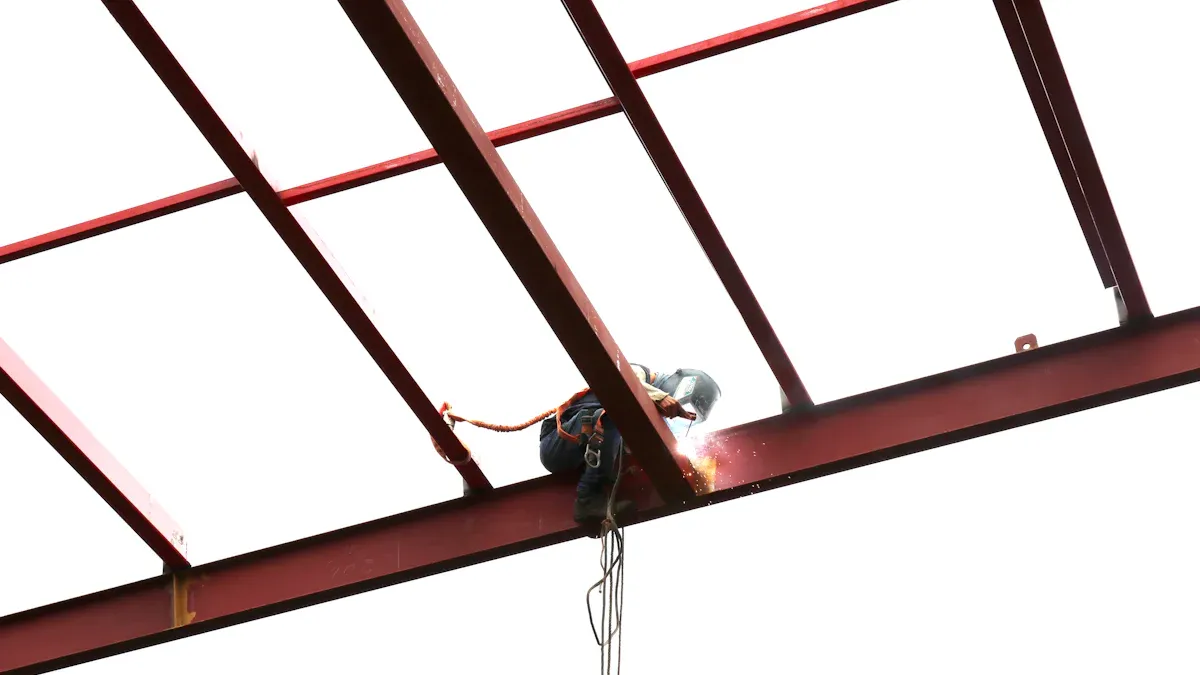

Steel Roof Purlin Spacing and Installation Logic
Total Cost of Ownership (TCO) Analysis
While the purchase price per ton for Z and C profiles is often similar, the total project tonnage may vary based on structural efficiency. Specifically, because Z-purlins allow for continuity, designers can often specify a thinner gauge for the main spans. For a 5,000 square meter facility, this optimization can reduce total steel requirements by up to 10%. Furthermore, this weight reduction lowers the dead load on the foundation and optimizes maritime freight costs for global delivery. Consequently, the use of Z-sections contributes to a more competitive TCO for the building owner.
Technical Note: Replacing Wood with Steel
B2B buyers often ask: Can you install steel purlins on a wood frame? While technically possible using specialized transition brackets, HC recommends a full steel solution. Steel purlins offer superior fire resistance, zero risk of termite damage, and significantly longer spans than wood rafters, making them a more stable choice for commercial assets.
Selection Criteria for Industrial Project Managers
To ensure a stable structural outcome, HC provides the following selection criteria for secondary framing members based on the building’s scale and environmental exposure.
When to Specify C Purlins (C-Shaped Sections)
- Shorter Spans: Ideal for single-bay residential and light commercial roof frameworks.
- Wall Support (Wall Girts): Preferred for walls because the symmetrical flanges provide a flat mounting surface for both exterior cladding and interior liner sheets.
- Openings: Highly effective for creating headers and sills around doors and windows.
When to Specify Z Purlins (Z-Shaped Sections)
- Multi-Bay Industrial Hubs: Essential for buildings where structural continuity over rafters improves load capacity.
- High Snow Loads: Recommended for regions where the doubled material thickness at lapped joints provides necessary reinforcement.
- Pitched Roofs: The geometry of Z-sections offers better resistance to sliding forces on roofs with slopes over 15 degrees.
Conclusion: Establishing Structural Reliability with HC
The technical distinction between C-shaped and Z-shaped Steel Purlins is a foundational aspect of modern industrial engineering. While both profiles utilize the durability of galvanized steel, their mechanical application determines the efficiency and safety of the final building. HC (HUA CHUANG ZHONG GONG) remains dedicated to providing precision-engineered components that adhere to international safety standards. By integrating advanced manufacturing with rigorous design coordination, we ensure that your project is completed with technical certainty and fiscal precision. Build for stability, build for efficiency, and build with the structural expertise of HC.
Frequently Asked Questions (FAQ)
1. What is a steel purlin in a structural framework?
A steel purlin is a horizontal structural member used to support roof panels and distribute gravity and lateral loads to the primary rafters. They are essential for creating a rigid building envelope.
2. Why choose galvanized steel purlins over red oxide primer?
Galvanizing provides cathodic protection that stops rust even if the surface is scratched. Red oxide is merely a surface primer that requires frequent maintenance and offers less environmental resistance.
3. What is the standard steel roof purlin spacing for warehouses?
Standard spacing typically ranges from 1200mm to 1800mm (4 to 6 feet). However, the exact spacing depends on the span, the local wind speed, and the weight of the roofing panels.
4. Is it better to use C purlins or Z purlins for a 100-meter long building?
For long buildings with multiple bays, Z-purlins are superior. Their ability to lap over support rafters creates a continuous beam effect, providing a stiffer and more material-efficient roof framework.
5. Can I use steel purlins in high-corrosion chemical environments?
Yes. HC provides enhanced galvanized coating weights (such as G90 or Z275) and specialized primers specifically designed for aggressive industrial or maritime atmospheres.
6. What maintenance do steel purlins require?
Maintenance is minimal. Periodic inspections of bolt connections and ensuring roof drainage is clear are the standard requirements. High-quality Steel Purlins can remain maintenance-free for 40 to 60 years.
